Low-Temperature Magnetic Behavior of Siderite (FeCO\(_3\))

Background and Importance

Siderite (iron(II) carbonate, FeCO\(_3\)) is a common diagenetic mineral in reducing environments that forms an important sink for iron (Dekkers et al., 2023). There can be substitution of Mn and Mg for Fe such that there is a solid solution series to rhodochrosite (MnCO\(_3\)) and magnesite (MgCO\(_3\)). It can be difficult to detect siderite with methods such as X-ray diffraction (XRD) in natural samples given fine grain sizes and low concentrations (Dekkers et al., 2023). A sensitive way to detect siderite in sediments and sedimentary rocks is through its low-temperature magnetic properties (Housen et al., 1996). Siderite is paramagnetic at room-temperature, but it undergoes a Néel transition (antiferromagnetic ordering) at a low critical temperature \(T_\mathrm{N}\) of ~37 K (Frederichs et al., 2003). Rhodochrosite has a similar paramagnetic to antiferromagnetic transition at ~34 K (Frederichs et al., 2003).

The ~37 K Néel Temperature of Siderite

Pure siderite orders magnetically at \(T_\mathrm{N} \approx 37\) K. This transition is one of a trio of low-temperature paramagnetic to antiferromagnetic transitions that occur in authigenic Fe-bearing minerals, with the others being: rhodochrosite (\(\mathrm{MnCO}_3\)) that orders at approximately 32–34 K, and vivianite (\(\mathrm{Fe}_3(\mathrm{PO}_4)_2 \cdot 8\,\mathrm{H}_2\mathrm{O}\)) at approximately 12 K (Frederichs et al., 2003). In rocks, \(\mathrm{Fe}^{2+}\)–\(\mathrm{Mn}^{2+}\) solid solutions can modify siderite’s transition temperature between approximately 32 and 38 K.

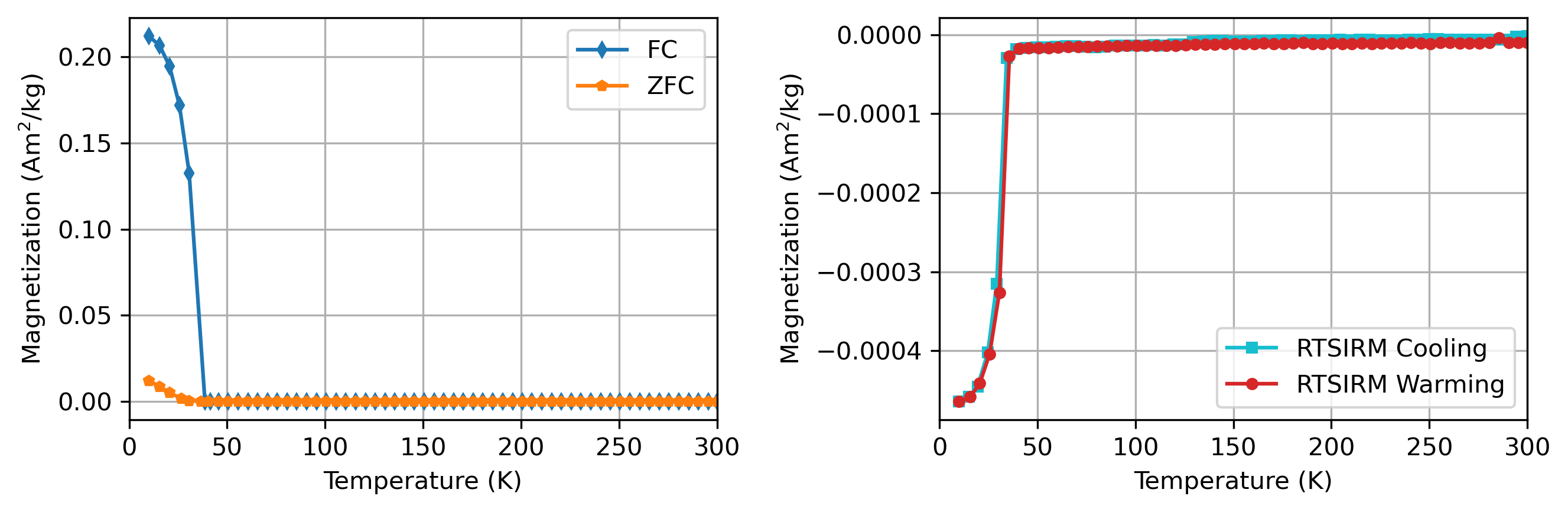

Fig. 15 Low-temperature remanence data developed on the specimen siderite_Roman-01 from the Rock Magnetic Bestiary (as processed in this notebook). There is a sharp remanence decay when warming during the field-cooled experiment (FC). This remanence loss is much larger than in the zero-field-cooled (ZFC) experiment. This difference is due to the additional thermal remanence acquired when the field is on as the specimen cools through the Néel temperature. In the RTSIRM experiment, there is change in magnetization while cooling below the Néel temperature. This behavior is resulting from a small bias field within the MPMS instrument that is imparting magnetization. Note that this behavior has the potential to be mistaken for the Besnus transition in pyrrhotite. However, the large difference between the FC and ZFC (FC/ZFC=17.4 for this specimen) is diagnostic of siderite and also helps to distinguish it from rhodochrosite. An interactive version of this figure can be seen here.

In the presence of an applied field, siderite and rhodochrosite acquire remanence below \(T_\mathrm{N}\) due to spin-canted antiferromagnetism (Frederichs et al., 2003). If a sample is cooled in zero field to low temperature, given a saturation isothermal remanent magnetization (SIRM) at ~5–10 K, and then warmed (a zero-field-cooled or ZFC remanence experiment), the ~37 K transition causes a loss of magnetization (Fig. 15). The similarity between \(T_\mathrm{N}\) of siderite and rhodochrosite can make it difficult to distinguish the two based on the transition temperature alone (Dekkers et al., 2023). If the sample is cooled from room-temperatures in the presence of a strong field (field-cooled, FC) before the remanence is measured the magnetization acquired (and then subsequently lost upon warming) is much larger than in a ZFC experiment (Fig. 15). This pronounced divergence between the FC and the ZFC curves (with FC>ZFC) is a hallmark of siderite (Fig. 15). This large difference is diagnostic for siderite relative to rhodochrosite and vivianite with a FC/ZFC ratio of 3 or greater proposed to identify siderite (Dekkers et al., 2023).

This FC to ZFC difference also plays an important role in distinguishing siderite’s transition from the Besnus transition of pyrrhotite that occurs at a similar temperature Housen et al., 1996. Monoclinic pyrrhotite does not show a remanence divergence across in FC/ZFC data at its 32–34 K transition. Pyrrhotite’s low-temperature transition is a crystallographic/anisotropy change, but it remains a ferromagnetic (ferrimagnetic) mineral throughout, and experiments have found that ZFC vs. FC warming curves for pyrrhotite are nearly superposed in magnitude (Horng and Roberts, 2018).

References

Mark J. Dekkers, Wout Hanckmann, Simo Spassov, and Thilo Behrends. Low temperature magnetic properties of variably oxidized natural and synthetic siderite. Geochemistry, Geophysics, Geosystems, 2023. doi:10.1029/2023gc010989.

T. Frederichs, T. von Dobeneck, U. Bleil, and M. J. Dekkers. Towards the identification of siderite, rhodochrosite, and vivianite in sediments by their low-temperature magnetic properties. Physics and Chemistry of the Earth, Parts A/B/C, 28(16–19):669–679, 2003. doi:10.1016/S1474-7065(03)00121-9.

Chorng-Shern Horng and Andrew P. Roberts. The low-temperature besnus magnetic transition: signals due to monoclinic and hexagonal pyrrhotite. Geochemistry, Geophysics, Geosystems, 19(9):3364–3375. doi:10.1029/2017gc007394.

B.A. Housen, S.K. Banerjee, and B.M. Moskowitz. Low-temperature magnetic properties of siderite and magnetite in marine sediments. Geophysical Research Letters, 23(20):2842–2846, 1996. doi:10.1029/96GL01197.
