Fit and remove the goethite component#
This notebook fits a polynomial function to the warming portion of a Room Temperature Saturation Isothermal Remanent Magnetization (RT-SIRM) low-temperature cycling experiment and then subtracts it to approximately remove the contribution that could be due to goethite or other reversible magnetic materials. The goal in doing so is to better isolate the change in remanence associated with behavior such as the Verwey and Morin transitions.
Introduction to goethite and its low-temperature behavior#
Goethite (α-FeOOH) is a common oxyhydroxide within soils, sediments, and other oxidized materials on Earth’s surface. When goethite is cooled from room temperature (~300 K) to lower temperatures, it exhibits an increase in its magnetization (Rochette and Fillion, 1989). This increase is reversible when goethite is warmed back up to room temperature (Carter-Stiglitz et al., 2006).
As a result of this low-temperature behavior, goethite exhibits a negative slope in MPMS experiments, when a sample is pulsed with a high field at room temperature and then cycled to 10K and back to room temperature. Such an experiment is known as an RT-SIRM low-temperature cycling experiment and is denoted with the MagIC method codes:
LP-CW-SIRM:LP-MC(Cycling between cooling and warming: Room temperature SIRM; Measured while cooling)LP-CW-SIRM:LP-MW(Cycling between cooling and warming: Room temperature SIRM; Measured while warming)
In a sample of mixed mineralogy containing goethite, this low-temperature behavior is useful for inferring the presence of goethite. Such an interpretation can be further strengthened by data from zero-field cooled (ZFC) and field cooled (FC) remanence upon warming experiments. Such experiments both show a progressive loss of remanence upon warming that typically is continuous from the lowest temperature of the experiment (typically 10 K) to the highest temperature of the experiment (typically 300 K). Additionally, a diagnostic behavior for goethite is that the FC curve has a stronger magnetization than the ZFC curve (Liu et al., 2006). Τhe reason for the loss in remanent magnetization upon warming in these FC/ZFC experiments, as well as the difference in the FC and ZFC magnetization, is that some of the goethite grains are acquiring a thermal remanent magnetization with more of a thermal remanence being blocked during the FC experiment (Liu et al., 2006). Samples showing this behavior are indicative of blocking temperatures below 300 K (Liu et al., 2006).
In summary:
“The combination of the large discrepancy between the FC and ZFC curves, and the large and reversible increase in remanence upon cooling, are therefore diagnostic of the presence of goethite” (Liu et al., 2006).
Goethite is not the only natural magnetic material that exhibits reversible RT-SIRM behavior. Any ferromagnetic (sensu lato) phase without a low temperature transition or isotropic point would be expected to display reversible behavior in an RT-SIRM experiment. This would include minerals such as kamacite (Bezaeva et al., 2023), greigite, (Chang et al., 2008), and ferrihydrite (Bilardello et al., 2020), among others. Thus, while we discuss removing the “goethite component” in this notebook, it is important to note that depending on the nature of a sample, this approach may be removing the magnetization of a phase other than goethite.
Removing the goethite component#
While goethite’s low-temperature behavior is quite useful for diagnosing its presence, it can be a nuisance for interpreting such experiments as it can obscure the behavior of other phases. There are two main approaches for dealing with this issue and removing the contribution of goethite:
Experimentally: given the low Néel temperature of goethite of ~120 ºC (corresponding to 393 K), one experimental protocol involves heating a specimen to 400 K to demagnetize magnetization associated with goethite prior to cooling to low temperature. Such a step is incorporated in the “goethite” test where the difference between magnetization with and without this 400 K heating step is used to quantify goethite abundance (Guyodo et al., 2006). See discussion of this test in Bilardello (2019). This approach may not be effective for minerals with reversible RT-SIRM behavior with higher Curie or Néel temperatures.
Numerically: the approach taken in this notebook is to apply a polynomial fit to the warming portion of the RTSIRM low-temperature cycling curve and to then subtract that fit from both the cooling and warming curve. This approach has been used in the literature in Silveira et al. (2021) and models the goethite contribution with a polynomial fit (typically a second order polynomial), which is then subtracted from the curve. The goal is to better isolate and quantify subtle transitions within the data (such as the Morin and Verwey transitions) that may otherwise be obscured.
Import Python packages#
import pmagpy.rockmag as rmag
import pmagpy.ipmag as ipmag
import pmagpy.contribution_builder as cb
import pandas as pd
%matplotlib inline
%config InlineBackend.figure_format = 'retina'
Import data#
Here we set the path (dir_path) to the example data in MagIC format, unpack the MagIC file within that folder ('A73-7-1350-4B-01a_mpms.txt'), create a contribution object that is a collection of these tables, and view the measurements table.
# set the directory path (dir_path) to the data
dir_path = '../example_data/goethite'
# set the name of the MagIC file
ipmag.unpack_magic('A73-7-1350-4B-01a_mpms.txt',
dir_path = dir_path,
input_dir_path = dir_path, print_progress=False)
# create a contribution object from the tables in the directory
contribution = cb.Contribution(dir_path)
measurements = contribution.tables['measurements'].df
measurements.dropna(axis=1, how='all').head() # see the first 5 measurements without empty columns
1 records written to file /Users/unimos/0000_Github/RockmagPy-notebooks/example_data/goethite/specimens.txt
1 records written to file /Users/unimos/0000_Github/RockmagPy-notebooks/example_data/goethite/samples.txt
1 records written to file /Users/unimos/0000_Github/RockmagPy-notebooks/example_data/goethite/sites.txt
1 records written to file /Users/unimos/0000_Github/RockmagPy-notebooks/example_data/goethite/locations.txt
240 records written to file /Users/unimos/0000_Github/RockmagPy-notebooks/example_data/goethite/measurements.txt
-I- Using online data model
-I- Getting method codes from earthref.org
-I- Importing controlled vocabularies from https://earthref.org
| experiment | instrument_codes | magn_mass | magn_r2_det | meas_field_dc | meas_temp | measurement | method_codes | quality | specimen | standard | timestamp | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| measurement name | ||||||||||||
| A73-7-1350-4B-01a-LP-FC-DC-14109-0-0 | A73-7-1350-4B-01a-LP-FC-DC-14109 | IRM-MPMS3 | 0.027394 | 2.715563e-07 | 0.002531 | 10.000116 | A73-7-1350-4B-01a-LP-FC-DC-14109-0-0 | LP-FC | g | A73-7-1350-4B-01a | u | 2093:06:23:05:14:35.739 |
| A73-7-1350-4B-01a-LP-FC-DC-14109-0-1 | A73-7-1350-4B-01a-LP-FC-DC-14109 | IRM-MPMS3 | 0.027376 | 2.660482e-07 | 0.002531 | 10.265534 | A73-7-1350-4B-01a-LP-FC-DC-14109-0-1 | LP-FC | g | A73-7-1350-4B-01a | u | 2093:06:23:05:14:39.928 |
| A73-7-1350-4B-01a-LP-FC-DC-14109-0-2 | A73-7-1350-4B-01a-LP-FC-DC-14109 | IRM-MPMS3 | 0.024952 | 1.203919e-06 | 0.002531 | 15.057111 | A73-7-1350-4B-01a-LP-FC-DC-14109-0-2 | LP-FC | g | A73-7-1350-4B-01a | u | 2093:06:23:05:15:12.16 |
| A73-7-1350-4B-01a-LP-FC-DC-14109-0-3 | A73-7-1350-4B-01a-LP-FC-DC-14109 | IRM-MPMS3 | 0.022089 | 8.515676e-07 | 0.002531 | 20.002497 | A73-7-1350-4B-01a-LP-FC-DC-14109-0-3 | LP-FC | g | A73-7-1350-4B-01a | u | 2093:06:23:05:15:42.989 |
| A73-7-1350-4B-01a-LP-FC-DC-14109-0-4 | A73-7-1350-4B-01a-LP-FC-DC-14109 | IRM-MPMS3 | 0.020069 | 6.714368e-07 | 0.002531 | 25.103758 | A73-7-1350-4B-01a-LP-FC-DC-14109-0-4 | LP-FC | g | A73-7-1350-4B-01a | u | 2093:06:23:05:16:16.287 |
Summarize experiments#
experiments = measurements.groupby(['specimen', 'method_codes']).size().reset_index().iloc[:, :2]
experiments
| specimen | method_codes | |
|---|---|---|
| 0 | A73-7-1350-4B-01a | LP-CW-SIRM:LP-MC |
| 1 | A73-7-1350-4B-01a | LP-CW-SIRM:LP-MW |
| 2 | A73-7-1350-4B-01a | LP-FC |
| 3 | A73-7-1350-4B-01a | LP-ZFC |

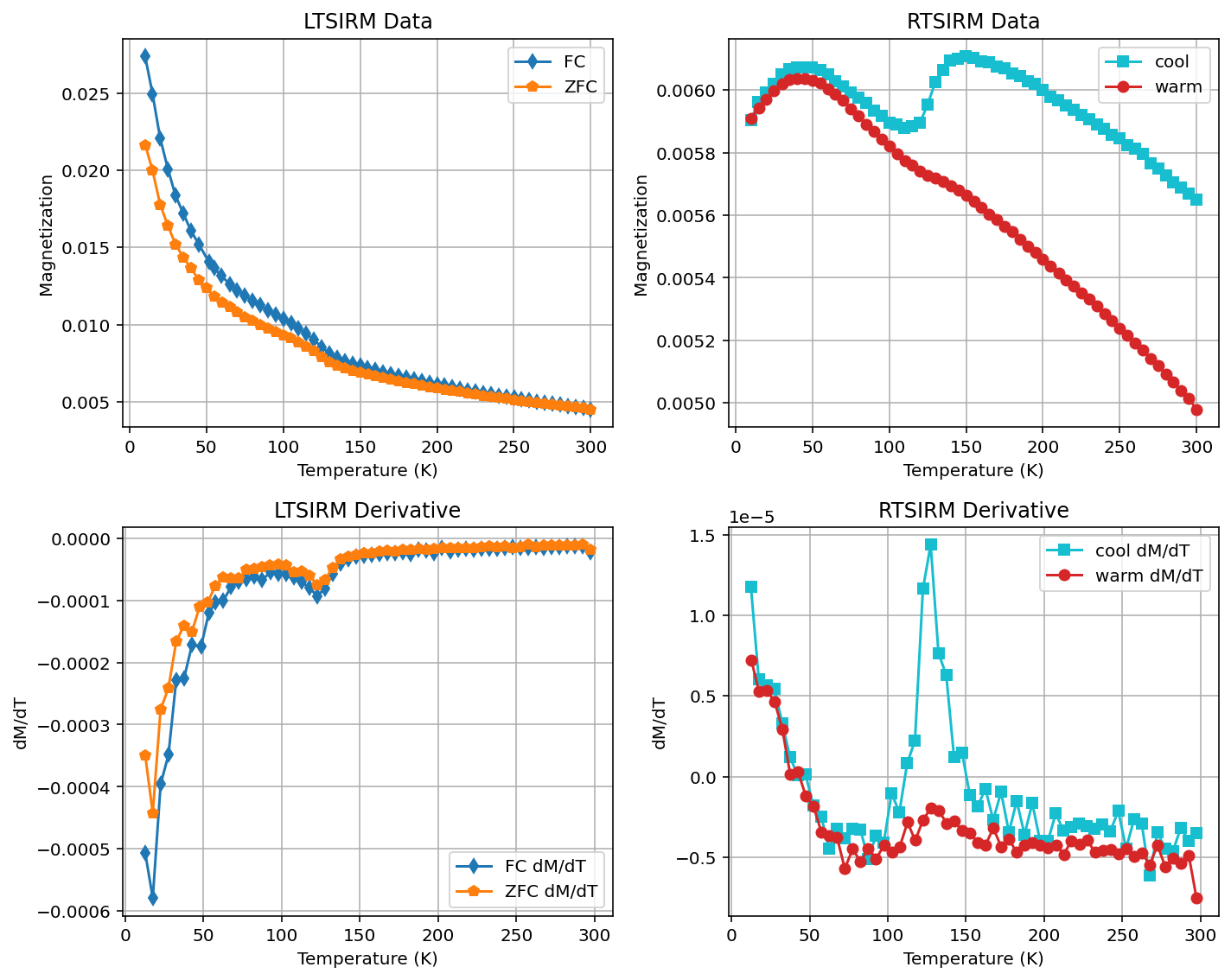

Plot data#
specimen_name = 'A73-7-1350-4B-01a'
fc_data, zfc_data, rtsirm_cool_data, rtsirm_warm_data = rmag.extract_mpms_data_dc(measurements, specimen_name)
rmag.plot_mpms_dc(fc_data, zfc_data, rtsirm_cool_data, rtsirm_warm_data,
plot_derivative=True, drop_first=True)
Numerically remove goethite#

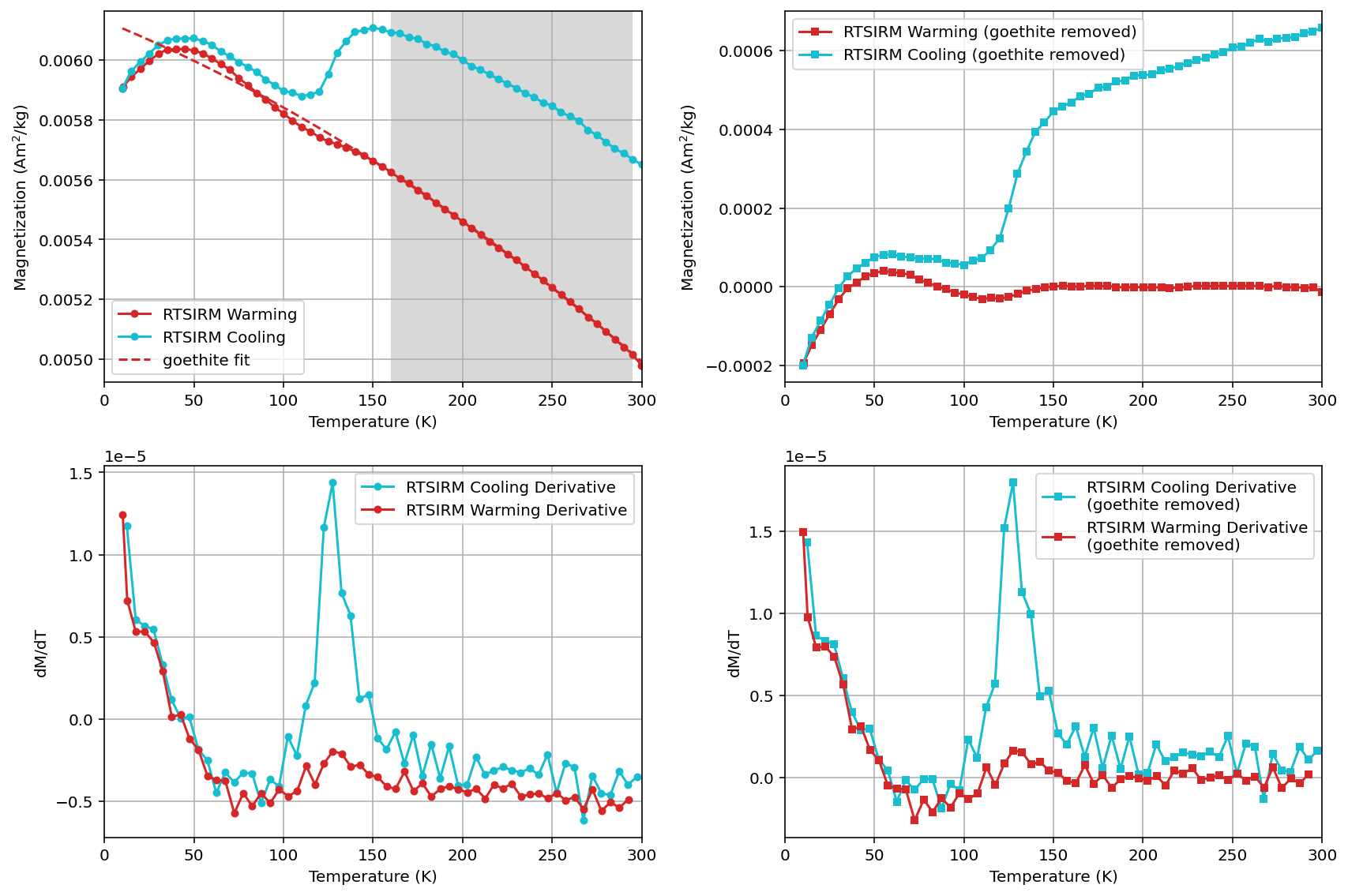

In the interactive widgets below, a function rmag.goethite_removal() is used which fits a polynomial to the RTSIRM warming curve to approximately remove the contribution of the curve that is due to goethite. The uncorrected and corrected data as well as their derivatives are plotted.
specimen = rmag.interactive_specimen_selection(measurements)
rmag.interactive_goethite_removal(measurements, specimen)
Apply the function rmag.goethite_removal#
The function can also be applied without using the interactive widget in which case the parameters are entered into the function as in the example below.
rmag.goethite_removal(rtsirm_warm_data,
rtsirm_cool_data,
t_min=160, t_max=295, poly_deg=2)
Apply the function and return the values#
If the parameter return_data=True, the function will return DataFrames from which the goethite fit has been subtracted.
rtsirm_warm_adjusted, rtsirm_cool_adjusted = rmag.goethite_removal(rtsirm_warm_data, rtsirm_cool_data,
t_min=160, t_max=295, poly_deg=2, return_data=True)
rtsirm_cool_adjusted.head()
| meas_temp | corrected_magn_mass | |
|---|---|---|
| 0 | 300.001099 | 0.000659 |
| 1 | 299.999817 | 0.000658 |
| 2 | 294.809082 | 0.000650 |
| 3 | 289.980713 | 0.000645 |
| 4 | 284.912720 | 0.000635 |
